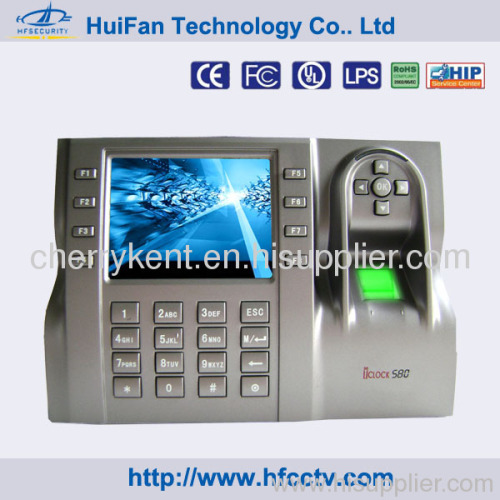

iClock580 is an innovative biometric fingerprint reader for Time & Attendance and access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The iClock580 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical
fingerprint sensor. The 3.5" TFT can display more information vividly, including user photo, fingerprint image quality and verification result etc. 8 function keys are the shortcuts to change the attendance status, work-code or to browse the short message, and can be defined as required. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. The iclock580 has access control connectivity for Wiegand-in, Wiegand-out, Door lock connection, Alarm, Bell, Remote to Exit switch.
Features:
*Color TFT screen with GUI Interface for ease of use.
*1 touch a-second user recognition
*Stores 8,000 templates and 200,000 transactions
*Reads Fingerprint and/or PINs
*Built-in Serial and Ethernet ports
*Built-in USB port allows for manual data transfer when network isn't available
*Optional integrated Wi-Fi also available.
*Relay contacts for alarm, bell, lock, exit, switch, etc
*8 user-defined function keys
*Multi Language Support
*Built in bell scheduling
*Real-time 1-touch data export 3rd party hosted & non-hosted applications
*Audio-Visual indications for acceptance and rejection of valid/invalid fingers
*SDK available for OEM customers and software developers
Connection Diagram:
Specifications:
Fingerprint Capacity | 8000 templates |
Transaction Capacity | 200,000 |
Hardware Platform | ZEM600 |
Communication | RS232/485, TCP/IP, USB-client, USB-host |
Standard Functions | Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID, Anti-passback |
| 3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal | Input & Output |
Optional Functions | ID/Mifare,Webserver,9 digit user ID, Wi-Fi |
Display | 3.5 inches TFT Screen |
Power Supply | 12V DC 1.5A |
Operating Temperature | 0 ℃- 45 ℃ |
Operating Humidity | 20%-80% |
